  • Pneumatic Lock Release<br>24V Control<br>CE Certification Wheel Alignment Use, Pneumatic Lock Release<br>4000kg , 4500kg , 5000kg , 5500kg , 6500kg

    Pneumatic Lock Release
    24V Control
    CE Certification

    Wheel Alignment Use, Pneumatic Lock Release
    4000kg , 4500kg , 5000kg , 5500kg , 6500kg



  • W-610B<br>W-626B<br>W-628B<br>W-630B

    W-610B
    W-626B
    W-628B
    W-630B




  • TS401<br>TS401.HR<br>TS501<br>TS501.HR *HR — High Rise 2160mm

    TS401
    TS401.HR
    TS501
    TS501.HR

    *HR — High Rise 2160mm


  • PARKING LIFT Space-save car parking lift<br>&<br>A compact solution to store classic, racing cars with safety.

    PARKING LIFT
    Space-save car parking lift
    &
    A compact solution to store classic, racing cars with safety.



  • L-2040.CE L-2140.CE<br>L-2040S.CE L-2140S.CE <br>L-2160S.CE Floor / Clear Floor  type, 2-point / single lock release, ECO 24V control box

    L-2040.CE L-2140.CE
    L-2040S.CE L-2140S.CE
    L-2160S.CE

    Floor / Clear Floor type, 2-point / single lock release, ECO 24V control box


  • L-2040 L-2140<br>    L-2040S L-2140S  Floor  / Clear Floor type, 2-Point / Single Lock Release

    L-2040 L-2140
    L-2040S L-2140S

    Floor / Clear Floor type, 2-Point / Single Lock Release


  • C-1500

    C-1500





TWO-POST LIFT
SCISSOR LIFT
FOUR-POST LIFT
PARKING LIFT
ROLLING JACK
TYRE CHANGER
WHEEL BALANCER

SCISSOR LIFT

SHORT PLATFORM
301LP <br> 305LP <br>302LP.AS 302LP.AS-Automatic leveling with one button press
MS301<br>MS305
400FC
M30<br>MT35
L-8030P<br>MR28
L-8050P
BS120<br>BS120E 1200kg Capacity
LONG PLATFORM
TS401<br>TS401.HR<br>TS501<br>TS501.HR *HR — High Rise 2160mm
S401P

  ELECTRO-HYDRAULIC
LOW PROFILE SCISSOR LIFT
  S401P



● Low profile @134mm convenient to be installed on ground
● Hydraulic system with 3 sets cylinder performs automatic synchronization
● Level alignment by hydraulic adjusting conducive to wheel alignment more accurate
● Built-in secondary lift performs low profile and high-rise @400mm with two cylinders
● External pneumatic and internal hydraulic locks perform dual security protection
● Built-in explosion-proof valve
● Electric foot guard and up-limit switch
● Beeping alert during descent process
● Built-in grease-lubricating to pivot joints

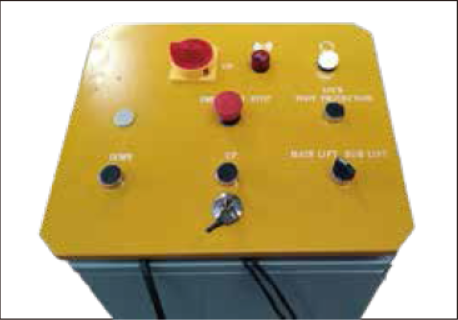

● 24V automatic control






Model

S401P





Capacity

4000 Kg





Min. Height

134 mm



  Max. Lifting Height

1820 mm




Runway Length

4600 mm





Runway Width

680 mm





Distance between Runways

900 mm





Air Supply

6-7 kg/cm2
